Quad band TTL Serial Port SIM800C GSM GPRS breakout board with GSM Antenna

FOB Reference Price:Get Latest Price
US $7-10 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM800C
Product name:
SIM800C GSM GPRS breakout board
Frequency band:
850/900/1800/1900MHz
GPRS mobile station:
class B
Control via AT commands:
3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands
PCBA dimension:
25*22mm
VBAT MUST be lower than:
4.4V,4.0V is recommended
Default baud rate:
9600bps
Packaging & Delivery
Packaging Details
With Inner vacuum package & anti-static bag & individual and out carton for SIM800C GSM GPRS breakout board
Delivery Time
2~3days after payment

Quad band TTL Serial Port SIM800C GSM GPRS breakout board with Antenna



Product Description
                                   Key  Features of SIM800H Module
ProductFrequency BandsData SpeedDemensionOther Features
SIM800C

GSM/GPRS:

850/900/1800/1900MHz

Max.DL:85.6kbps

Max.UL:85.6kbps

17.6*15*7*2.3mm

*Control via AT commands

*TCP/UDP/FTP/HTTP/POP3/SMTP

*USB,GPIO,ADC,SPI,etc





SIM800C Breakout Board



2.2 PCBA overview

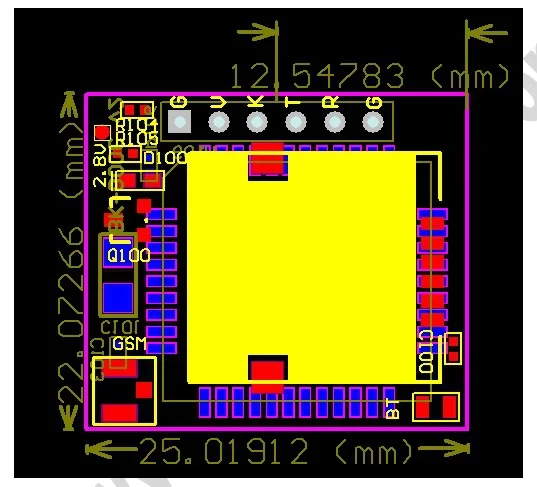

2.3 PCBA dimension: 25*22mm.

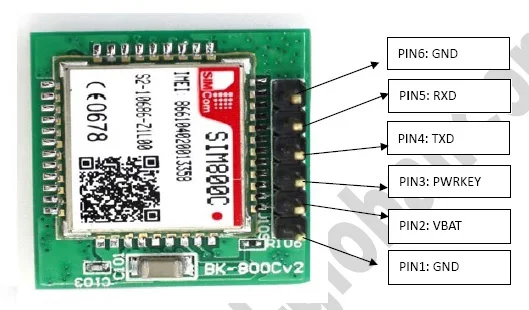

3. Pin definition

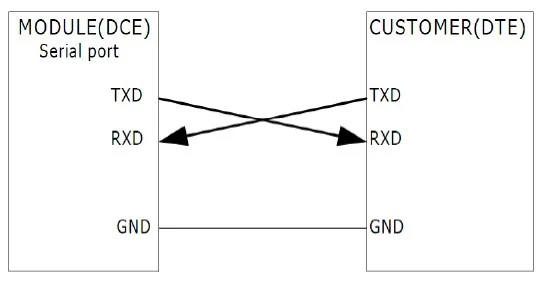

3.2How to use TXD and RXD(Default baud rate is 9600bps)

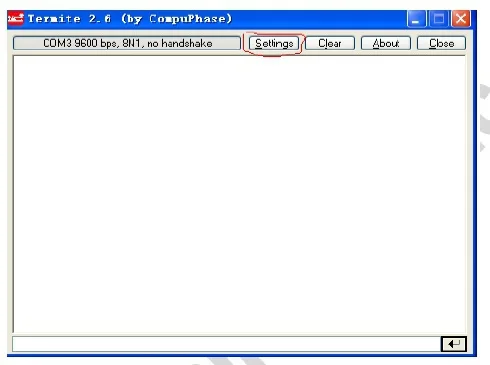

4 Open serial software and choose right serial number, Baud rate as      Custom as below:

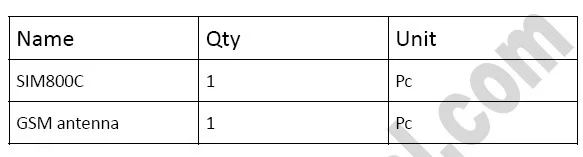

5.Accessories:



6.Docments of SIM800C breakout board:

Packaging & Shipping



Package : With Inner vacuum package & anti-static bag & individual and out carton.

Shipping : 1) Door to Door service by air -DHL, Fedex, UPS, TNT,EMS.Aramex. Advantage: Fast delivery time.
                   2) Sea transportation: Most cost-effective
                   3) Register post: China & HK register post for sample shipping, weight should be within 5kg.





FAQ

Q: What is your Lead time?
A: GSM GPS GLONASS Module & Accessories: 1~2 days for trail order,5~10 days for mass production order
A: PCB: 2 days for prototype,5~7 days for mass production
A: PCB Assembly: 1 week for prototype,3 days for Mass production

Q: Can I visit your factory?
A: Yes, of course you are welcome to visit us. Please inform us of your visit in advance.
