Hot Sale GPS GLONASS Module SIM68V Breakout Board with GNSS antenna

FOB Reference Price:Get Latest Price
US $25-29 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM68V
Product name:
SIM68V Breakout Board
Supply voltage:
5V is recommended
Transmit Data:
TTL Series data Output
Receives Data:
TTL Series data Input
Support:
GPS/GLONASS/Galileo/QZSS
Baudrate:
9600BPS
Testing tool:
SIM Com GPS DEMO V1.07 software
Max. update rate:
10hz
Accuracy:
Horizontal Position<2.5m CEP
Accessories:
GNSS antenna and PL2303 CABLE
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
With Inner vacuum package & anti-static bag & individual and out carton for SIM68V Breakout Board
Port
Shenzhen
Lead Time :
2~3days after payment

 Hot Sale GPS GLONASS Module SIM68V Breakout Board with GNSS antenna

Product Description
                                                                   Key  Features of SIM68V Module
ProductModeDemensionReceive typePosistion accuracy
SIM68VGPS/GLONASS/Galileo/QZSS16*12.2*2.4mm

33tracking/99acquisition-channel

GNSS receiver

2.5m CEP



SIM68V Breakout Board

SIM68V-11SIM68V-SIM68V-10

SIM68V Breakout Board-15 (3)

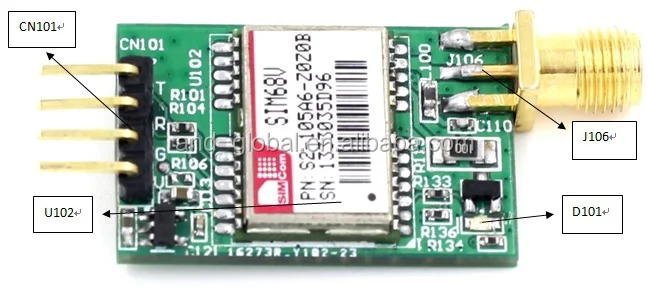

2. Overviewreliable GNSS module SIM68V,GLONASS board,SIM68V breakout board

D101

1PPS LED indicator

CN101

4pin 2.54mm header interface

J106

GPS/GLONASS Antenna

U102

GPS/GLONASS module(Can be any other GNSS module)

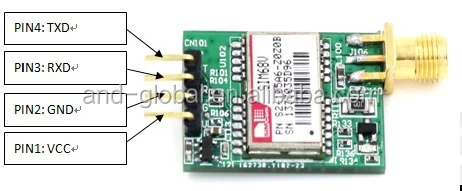

3 Pin definition of 4pin connector

reliable GNSS module SIM68V,GLONASS board,SIM68V breakout board

Pin name

Pin number

Mark on PCB

Description

Comment

GND

2

G

Ground



VCC

1

V

Supply voltage

5.0V is recommended

TXD

4

T

Transmit Data

TTL Series data Output

RXD

3

R

Receives Data

TTL Series data Input

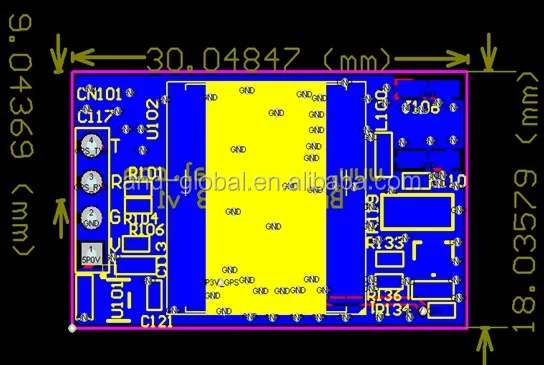

4.PCB dimension:30*18mm.

reliable GNSS module SIM68V,GLONASS board,SIM68V breakout board



Packaging & Shipping

 --Shipping



Our Services

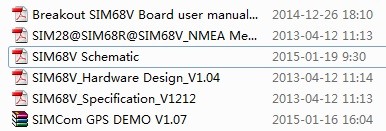

 More using steps, we will provide documents for your reference.

SIM68V BREAKOUT BOARD MANUAL.jpg



FAQ

Q: What is your Lead time?
A: GSM GPS GLONASS Module & Accessories: 1~2 days for trail order,5~10 days for mass production order
A: PCB: 2 days for prototype,5~7 days for mass production
A: PCB Assembly: 1 week for prototype,3 days for Mass production

Q: Can I visit your factory?
A: Yes, of course you are welcome to visit us. Please inform us of your visit in advance.
