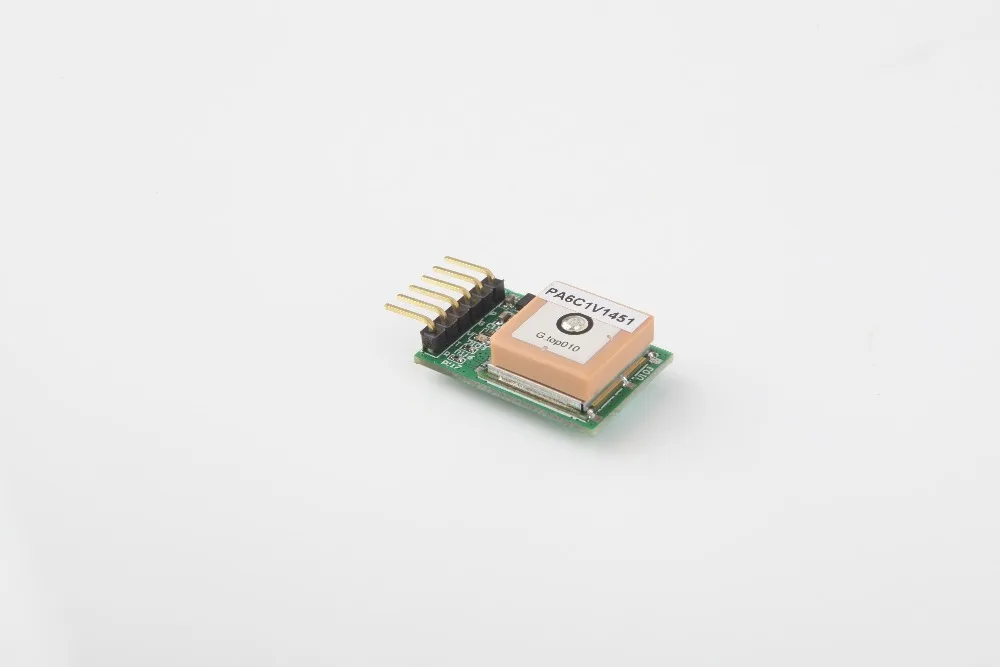

LadyBird 3.1Hz 9600bps MT3339 PA6C GPS Module Breakout Board

FOB Reference Price:Get Latest Price
US $1-10 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Gtop
Model Number:
BK-PA6C
Product name:
MT3339 PA6C GPS Module Breakout Board
Chipset:
MT3339
UART (TTL):
1PPS Support
Header interface:
7pin 2.54mm
Supply voltage:
5V
Time Mark Output:
2.8V CMOS Level
Baud rate:
3.1Hz 9600bps
Backup power input for RTC & navigation:
Typical 3.0V
Packaging & Delivery
Packaging Details
With Inner vacuum package & anti-static bag & individual and out carton for MT3339 PA6C GPS Module Breakout Board
Delivery Time
2~3days after payment



LadyBird 3.1Hz 9600bps MT3339 PA6C GPS Breakout Board



Product Description

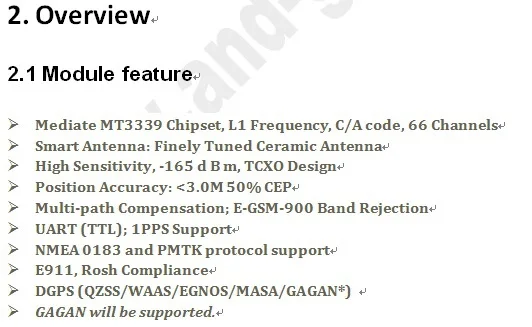

Features of PA6C

  • MediaTek MT3339 Chipset, L1 Frequency, C/A code, 66 Channels
  • Smart Antenna: Finely Tuned Ceramic Antenna
  • Small Dimension, 16 x 16 x 6.2 mm; SMD
  • High Sensitivity, -165 dBm, TCXO Design
  • Position Accuracy:
  • Multi-path Compensation ; E-GSM-900 Band Rejection
  • UART (TTL)
  • NMEA 0183 and PMTK protocol support
  • E911, RoHS Compliance
  • 1PPS: ±10ns RMS
  • Multi-tone active interference canceller (MTAIC)
  • DGPS (QZSS/WAAS/EGNOS/MASA/GAGAN*)
  • GAGAN will be supported.

























Our Services

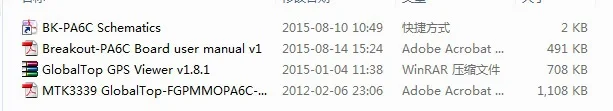

More using steps, we will provide documents for your reference.



Packaging & Shipping







Company Information

AND Technologies Co., Ltd (buypcba.com) is a leading electronics solutions manufacturing company with the capability

to cater to a wide segment of contract manufacturing services from electronic assembly of Printed Circuit boards to

production of complete ready to ship products.





FAQ



Q: What is your Lead time?
A: GSM GPS GLONASS Module & Accessories: 1~2 days for trail order,5~10 days for mass production order
A: PCB: 2 days for prototype,5~7 days for mass production
A: PCB Assembly: 1 week for prototype,3 days for Mass production



Q: Can I visit your factory?
A: Yes, of course you are welcome to visit us. Please inform us of your visit in advance.



Q: What is the guarantee of our products?

A: 1) A year warranty;
    2) Warranty service will be honored if the damage is not caused by human;
    3) Pls send back the defective goods within the warranty period.

Contact information

Phone No.: 86-13207744612

Whatsapp: 86-13207744612



Click  send  now  for more details of MT3339 PA6C GPS Module Breakout Board.
