High Performance/Low Price gps receiver module

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
High Performance/Low Price gps RECEIVER module
Brand Name:
HOLUX
Place of Origin:
Taiwan
Application:
GPS PND
Input power input:
3.3-5v
Input current:
50mA(without antenna)
Operating Temperature:
-10°C ~ 60°C
Technical support:
Yes
Warranty:
one year
Frequency:
L1, 1575.42 MHz
Reacquisition:
0.1 sec, average
Active Size:
25.4(W)*25.4(D)*7(H) (mm)
Average Cold Start time:
under 42 seconds
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Original packge
Port
Shenzhen
Lead Time :
2~3 days

Specifications

1)HOLUX GPS Module GR-87
2)High Performance/Low Price gps receiver module
3)GPS car navigation module GR-87 GR 87

Kindly NOTE:
All accessories(antenna,cable,simcard holder or connector etc) which are shown with module on picture,purpose are clarifying which accessoires can match for modules.
So if you need latest quotation for module or each accessory,feel free to contact with us,we will reply for you on TM asap,will reply for you via emal within 24 hours.



Specification:

General
1. Frequency L1, 1575. 42 MHz.
2. C/A code 1.023 MHz chip rate.
3. Channels: 20.

TIMEMARK-1PPS Pulse
1. Level CMOS 3V
2. Pulse duration 1 microsecond.
3. Time reference At the pulse positive edge.
4. Measurements Aligned to GPS second, 1 microsecond.

Datum
1. Default WGS-84.
2. Other Support different datum by request.

Physical Characteristics
1. Active Size: 25. 4(W) x 25. 4(D) x 7(H) (mm)
2. Weight: 2 g
3. Interface connector 6-pin straight male header, 1. 25 mm pitch.

Environmental Characteristics
1. Operating temperature range(C): -10   to +60
2. Storage temperature range(C): -20  to +85

Power:
1. Input power 3.3V — 5. 5VDC
2. Input current: Less than 80 mA (without antenna)
3. Backup power: 3V Rechargeable Lithium cell battery, up to 500 hours
Discharge.

Acquisition Rate (Open sky, stationary requirements)
Reacquisition: 0.1 sec., average.
Hot start: 1 sec., average.
Warm start: 38 sec., average.
Cold start: 42 sec., average.

Interface:

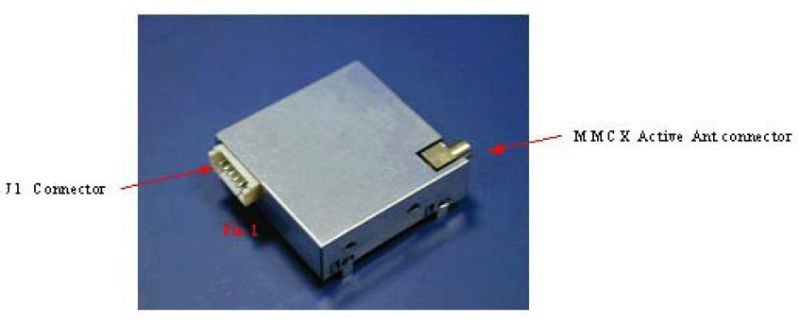

Antenna connector type: MMCX, output 2. 8 VDC. (optional output VCC_IN).
