High performance GR-87 gps receiver module

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
HOLUX
Model Number:
gps receiver module GR 87
Name:
GR-87 gps receiver module
Active Size:
25.4(W)*25.4(D)*7(H) (mm)
Input power input:
3.3-5v
Input current:
50mA(without antenna)
Operating Temperature:
-10°C ~ 60°C
Frequency:
L1, 1575.42 MHz
Reacquisition:
0.1 sec, average
Average Cold Start time:
under 42 seconds
Application:
GPS PND
Warranty:
one year
Packaging & Delivery
Packaging Details
Original packge for High performance GR-87 gps receiver module
Delivery Time
2~3 days

                    High performance GR-87 gps receiver module

Product Description



General Features1. Frequency L1, 1575. 42 MHz.
2. C/A code 1.023 MHz chip rate.
3. Channels: 20.
TIMEMARK-1PPS Pulse1. Level CMOS 3V
2. Pulse duration 1 microsecond.
3. Time reference At the pulse positive edge.
4. Measurements Aligned to GPS second, 1 microsecond.
Datum1. Default WGS-84.
2. Other Support different datum by request.

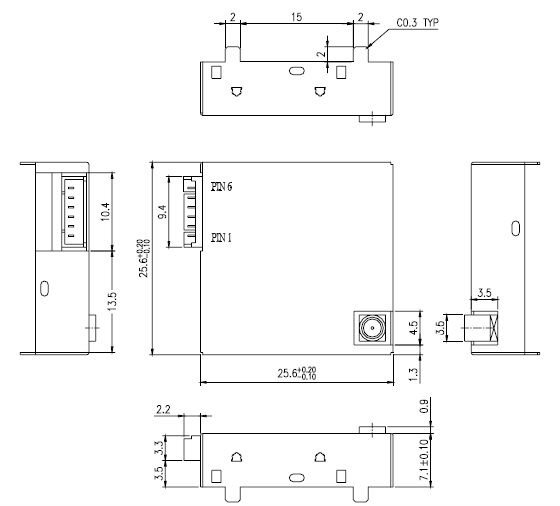

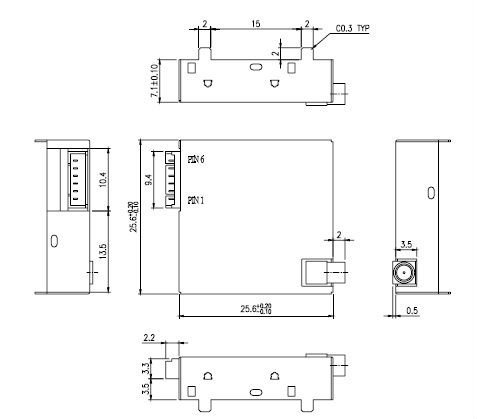

Physical Characteristics1. Active Size: 25. 4(W) x 25. 4(D) x 7(H) (mm)
2. Weight: 2 g

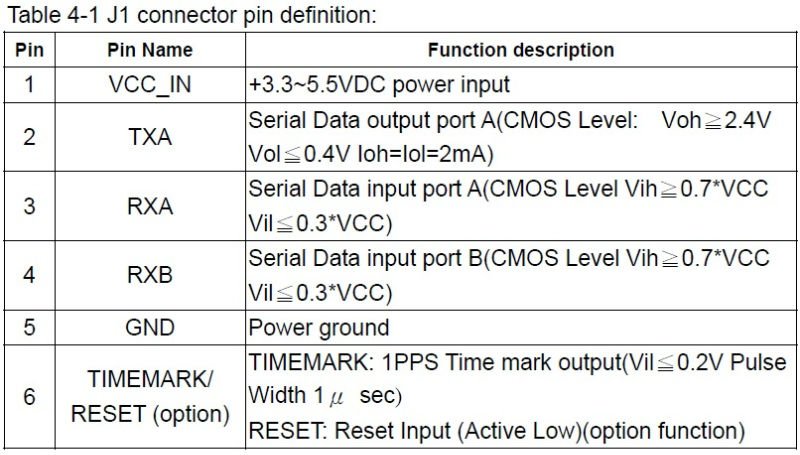

3. Interface connector 6-pin straight male header, 1. 25 mm pitch.
Environmental Characteristics1. Operating temperature range(C): -10   to +60
2. Storage temperature range(C): -20  to +85
Power1. Input power 3.3V — 5. 5VDC
2. Input current: Less than 80 mA (without antenna)
3. Backup power: 3V Rechargeable Lithium cell battery, up to 500 hours
Acquisition Rate (Open sky, stationary requirements)Reacquisition: 0.1 sec., average.
Hot start: 1 sec., average.
Warm start: 38 sec., average.
Cold start: 42 sec., average.

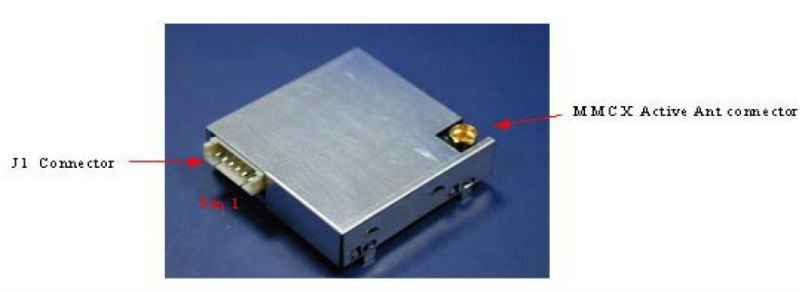

Antenna connector type



MMCX, output 2. 8 VDC. (optional output VCC_IN)
