GPS GLONASS Module SIMCOM SIM68R

FOB Reference Price:Get Latest Price
US $5-7 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM68R, SIM68R
Type:
GNSS module-SIM68R
Max update rate:
10Hz
Dimensions:
22.4*17*2.7mm
NormalTemp:
-40°C to +85°C
Serial interfaces:
UART,I2C
Certificate:
ROHS; CE
D/C:
2013
Weight:
2g
Package:
SMT
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Original package
Port
Shenzhen
Lead Time :
2~3 days

SIM68R



SIMCom presents a high performance and  reliable GNSS module-SIM68R. This is a standalone L1 frequency GNSS module in a SMT type with MTK’s high sensitivity navigation engine, which allows you to achieve the industry’s high levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.



UNO banner for gps.jpg

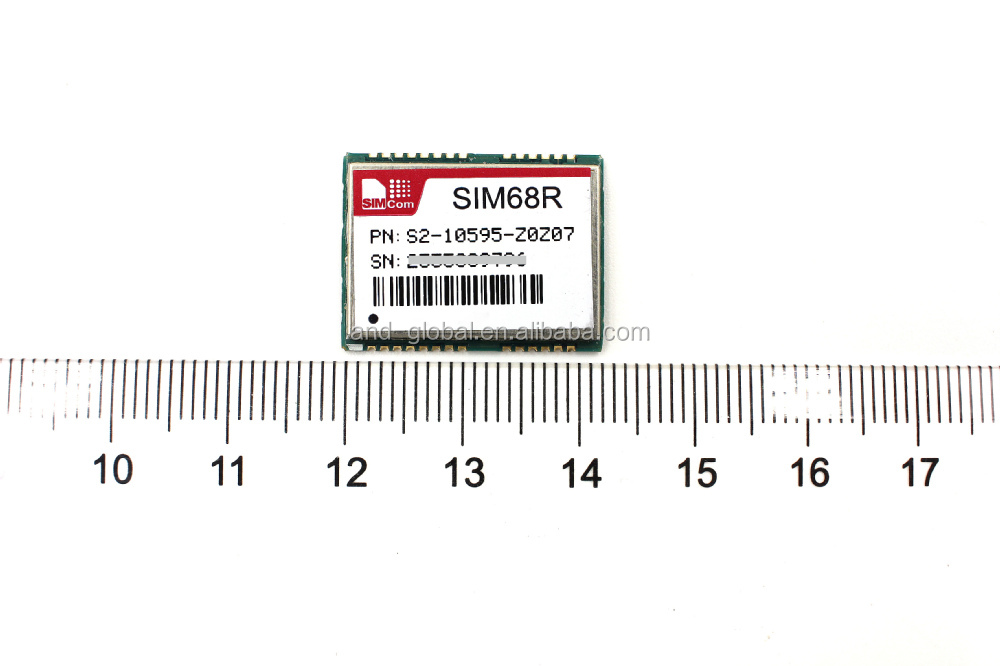

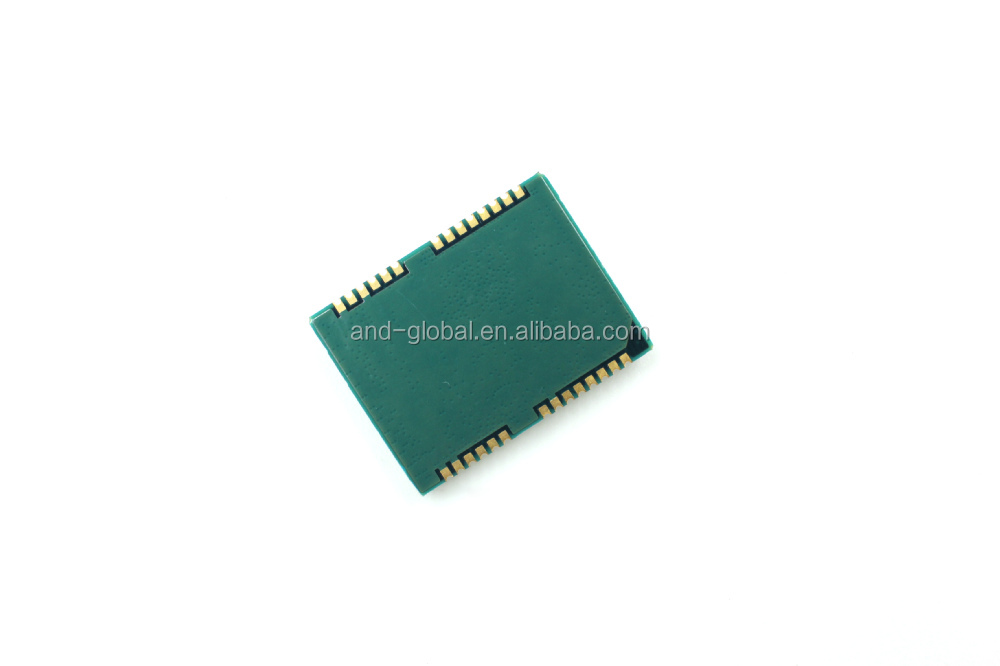

SIM68R-11SIM68R-14









Mechanical data
* Dimensions : 22.4*17*2.7mm
* Weight : 2g
* Package : SMT



Interfaces
* Serial interfaces : UART,I2C
* Digital I/O  EINT0 input
          AADET_IN
          Pulse-per-second (PPS)

* Protocols    NMEA
                        PMTK


Prformance data
* Receiver type  33tracking/99 acquisition-channel GNSS receiver
* Max update rate  10Hz
* Sensitivity1
       Tracking        -167dBm
       Navigation    -157dBm
       Cold starts   -148dBm
*Time-To-First-Fix1,2
       Cold starts     28s
       Warm starts   26s
       Hot starts        <1s
       EPO Assist:   13s(CTTFF)
* Accuracy
  Automatic Position3   <2.0m CEP

  EPO 30days DATA : 1.99m
  Speed4 : 0.1m/s
*Operation temperature : -40°C to +85°C


Electrical data
* Power supply      2.8V~4.3V
* Power consumption2,5
      -Acquisition    34mA
      -Tracking        27mA
      -AlwaysLocateTM    <200uA
* Antenna type        Active and passive
* Antenna power       External or internal VCC_RF

  Support product
* SIM68 EVB KIT with USB V2.0 full speed interface



————————————————————


1. Autonomous  ST-AGPS mode
2 .Demonstrated in lab
3. All SV @ –130 dBm
4. 50% 24 hr static, -130dBm
5. @3.3V with a passive antenna



Packaging & Shipping

Package : With Inner vacuum package & anti-static bag & individual and out carton.




Shipping : 1) Door to Door service by air -DHL, Fedex, UPS, TNT,EMS.Aramex. Advantage: Fast delivery time.
                   2) Sea transportation: Most cost-effective
                   3) Register post: China & HK register post for sample shipping, weight should be within 5kg.
